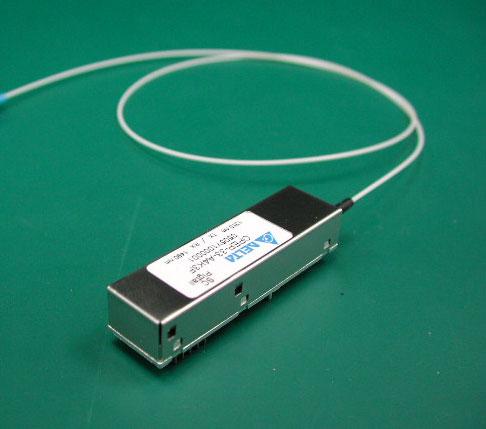

Single Fiber Solution for FTTx Application solution for point-to multi point topology, giving plenty of margin for high bandwidth demangding applications such as video-on-demand, on-line games and voice over IP, while lowering maintenance and operating costs. Delta PON solution, comprising of high stability burst-mode transceiver for central office side (OLT) and premise side (ONU), is designed toward low power consumption, high receiver sensitivity, and very short burst signal response time. Variable of design is applicable to applications such as Gigabit Ethernet (GEPON), and video (Triple play PON).

Features

● RoHS compliant

● Single +3.3V power supply

● Communication distance up to 20Km

● Diplexer and Triplexer option

Applications

● G-PON of ITU-T G..984.2

● GE-PON of IEEE802.3ah

For more info,pls refer to this web: http://www.delta.com.tw/product/cp/fot/fot_product_gpon2.asp

Form Factor	P/N	Application	Distance/Link budget	Wave length (nm)	TX Output Power (dBm)	RX Sensitivity (dBm)	Digital Diagnostic Monitoring	Package
GPON ONU	OPGP-34-A4B3RA OPGP-34-A4B3RC OPGP-34-A4B3RT OPGP-34-A4B3RTE OPGP-34-A4B3RZ	GPON Diplex ONU	20Km	1310/1490	+0.5~+5	-28	N	SFF 2x5 SC Pigtail
GPON ONU	OPGP-34-A4B3RD	GPON Diplex ONU	20Km	1310/1490	+0.5~+5	-28	N	SFF2x10SC Pigtail
GPON ONU	OPGP-34-A4B3RTW	GPON Diplex ONU	20Km	1310/1490	+0.5~+5	-28	Y	SFF2x10SC Pigtail
GPON ONU	OPGP-34-C4B3RT	GPON Triplex ONU	20Km	1310/1490/1550	+0.5~+5	-28	Y	SMF SC Pigtail
