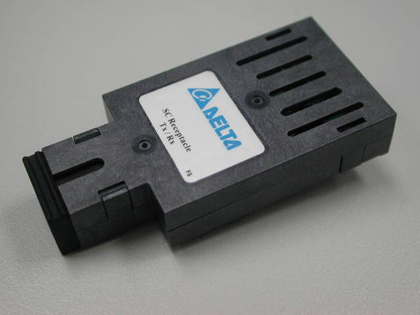

1x9 Bi-Directional Transceiver Module for Fast Ethernet, ATM, SONET OC-3/SDH STM-1

Features

● RoHS compliant

● Industry Standard 1 x 9 Footprint

● Single Mode Fiber, Bi-Directional Transmission with 1310nm Transmitter and 1550nm Receiver

● Link Distance up to 15km

● Single +5V power supply and PECL logic interface

● Wave Solderable and Aqueous Washable

● Bellcore GR-468 compliant

● Laser Class 1 Product which comply with the requirements of IEC 60825-1 and IEC 60825-2

Description

DELTA’s 1x9 Bi-Directional transceiver is designed for point-to-point Bi-Directional Optical Network transmission. The module consists 1310nm FP laser, InGaAs PIN, Preamplifier and WDM filter in a high-integrated optical sub-assembly, and it receives up to 155Mbps of continuous data at 1550nm, and transmits 155Mbps of continuous data at 1310nm.

The module is contained in a 1x9 industry standard package with a SC receptacle connector, and support PECL electrical signal Interface and receiver signal detect output.

Application

● TTC TS-1000

● ITU-T G.985

● IEEE 802.3ah 100BASE-BX/ Fast Ethernet

● SONET OC-3/SDH STM-1/ ATM Network

● FTTx Broadband Access System

Performance

● OPBD-E1J1R data link up to 15km in 9/125um single mode fiber.
