RoHS Compliant Multirate Small Form Factor Pluggable Transceiver for SONET OC-48/SDH STM-16 Digital Diagnostic Function

Features

● Compliant with SFP Transceiver SFF-8472 MSA specification

● Compliant with Intermediate SONET OC-48 / SDH STM-16 (I-16)

● Compliant with the 2.125GBd Fiber Channel 200-SM-LC-L FC-PI Rev.13

● Compliant with the 1.0625GBd Fiber Channel 100-SM-LC-L FC-PI Rev.13

● Compliant with Specifications for IEEE 802.3z/Gigabit Ethernet

● Compliant with Industry Standard RFT Electrical Connector and Cage

● Single + 3.3V Power Supply and TTL Logic Interface

● Laser Class 1 Product which comply with the requirements of IEC 60825-1 and IEC 60825-2

Description

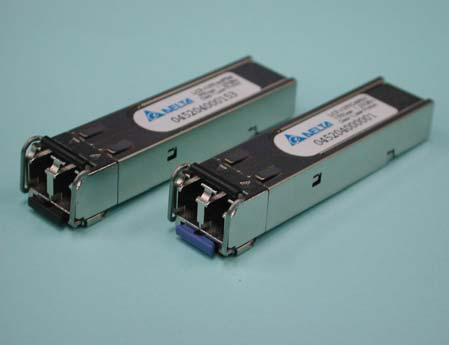

The LCP-2488B4HDRxM series are hot pluggable 3.3V Small-Form-Factor transceiver modules designed expressly for high-speed communication applications that require rates up to 2.5Gb/s. The transceiver is data rate transparent, which means it can comply with SONET OC-48 SR (SDH STM I-16) standards, Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC-PI 13.0. They are compatible with SONET OC-12 and SONET OC-3 standards.

The LCP-2488B4HDRxM series are designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, VCC, TX optical power, TX laser bias current, and RX received optical power.

The post-amplifier of the LCP-2488B4HDRxM series also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.

Applications

● SONET OC-48 SR / SDH STM I-16

● SONET OC-12 SR / SDH STM I-4

● SONET OC-3 SR / SDH STM I-1

● Fast Ethernet

● Gigabit Ethernet / 1x/2x Fibre Channel

Performance
