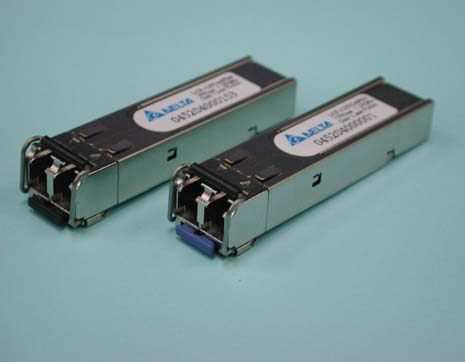

RoHS Compliant SFP Transceiver for ATM, SONET OC-12/SDH STM-4 with Digital Diagnostic Function

Features

Compliant with SFP transceiver SFF-8472 MSA specification with internal calibration

LCP-622A4HDR compliant with Intra-office SONET OC-12/ SDH STM-4 (I-1)

LCP-622B4JDR compliant with Short-haul SONET OC-12 / SDH STM-4 (S-4.1)

Single + 3.3V power supply and TTL logic interface

EEPROM with Serial ID functionality

Laser Class 1 product which comply with the requirements of IEC 60825-1 and IEC 60825-2

Duplex LC connector interface

Description

The LCP-622 series is a hot pluggable 3.3V Small Form Factor transceiver module designed expressly for high-speed communication applications that require rates of up to 622Mbit/sec. It is compliant with the ATM, SONET OC-12/SDH STM-4 standards, as well as the SFF-8472 SFP Multisource Agreement (MSA).

The LCP-622 series are designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, VBCCB, TX optical power, TX laser bias current, and RX received optical power.

The post-amplifier of LCP-622 series also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.

Applications

SONET OC-12/SDH STM-4

Switch to Switch interface

Switched backplane applications

File server interface

Performance

LCP-622A4HDR Data Link up to 2km in 62.5/125μm Multi-Mode Fiber.

LCP-622B4JDR Data Link up to 15km in 9/125μm Single Mode Fiber
