RoHS Compliant SFP Transceiver for ATM, SONET OC-3/SDH STM-1 with Digital Diagnostic Monitoring Function

Features

● Compliant with SFP transceiver SFF-8472 MSA specification with internal calibration

● LCP-155A4HDR compliant with Intra-office SONET OC-3/ SDH STM-1 (I-1)

● LCP-155B4JDR compliant with Short-haul SONET OC-3 / SDH STM-1 (S-1.1)

● LCP-155B4MDR compliant with Long-haul SONET OC-3 / SDH STM-1 (L-1.1)

● Multirate operation from 100Mb/s to 155Mb/s

● Single + 3.3V power supply and TTL logic interface

● EEPROM with Serial ID functionality

● Laser Class 1 product which comply with the requirements of IEC 60825-1 and IEC 60825-2

● Duplex LC connector interface

Description

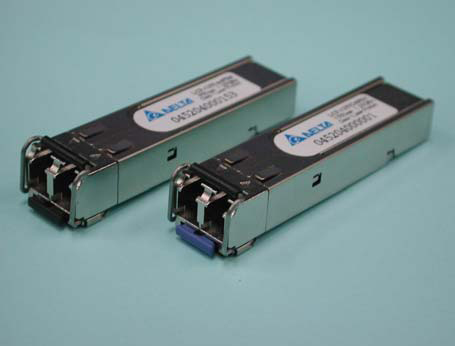

The LCP-155 series is a hot pluggable 3.3V Small-Form-Factor transceiver module designed expressly for high-speed communication applications that require rates of up to 155Mbit/sec. It is compliant with the ATM, SONET OC-3/SDH STM-1 standards, as well as the SFF-8472 SFP Multisource Agreement (MSA).

The LCP-155 series are designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA) with digital diagnostic monitoring functions: Temperature, VCC, TX optical power, TX laser bias current, and RX received optical power.

The post-amplifier of the LCP-155 series also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.

Applications

● SONET OC-3/SDH STM-1

● ATM Network

● Fast Ethernet

● Switch to Switch interface

● Switched backplane applications

● File server interface

Performance

● LCP-155A4HDR Data Link up to 2km in 62.5/125μm in Multi-Mode Fiber

● LCP-155B4JDR Data Link up to 15km in 9/125μm Single Mode Fiber
